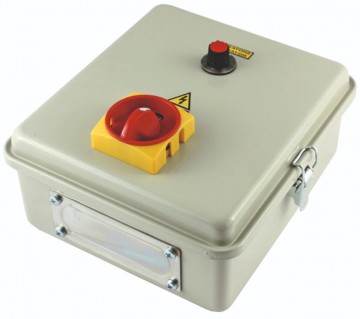

CV-12-mk (PV CV12F Z4 STD)

Thyristor regulators are used to control the force of an electromagnetic drive. Using a thyristor control, the transport speed of an electromagnetic vibrating chute or sieve can be infinitely controlled.

Adjustment of the desired value is done by means of a control signal of 0-10 volts, 0-20 mA or potentiometer of 100 kOhm. (potentiometer, range and rotary knob included)

Furthermore, the regulator is equipped with:
- minimum and maximum wish value adjustment
- Slow/fast startup adjustable
- 3000/6000 vibrations per minute
- Potential-free start/stop contact

Supplied in metal case, with main switch and rotary knob for setting the desired (output) value.

This control is available with a supply voltage of 230 Volt or 400 Volt.


Supply voltage                   :  230 Volt / 400 Volt ; 50/60 Hz.
Maximum output current     :  12 A.

For full details, see DATASHEET (click here)
